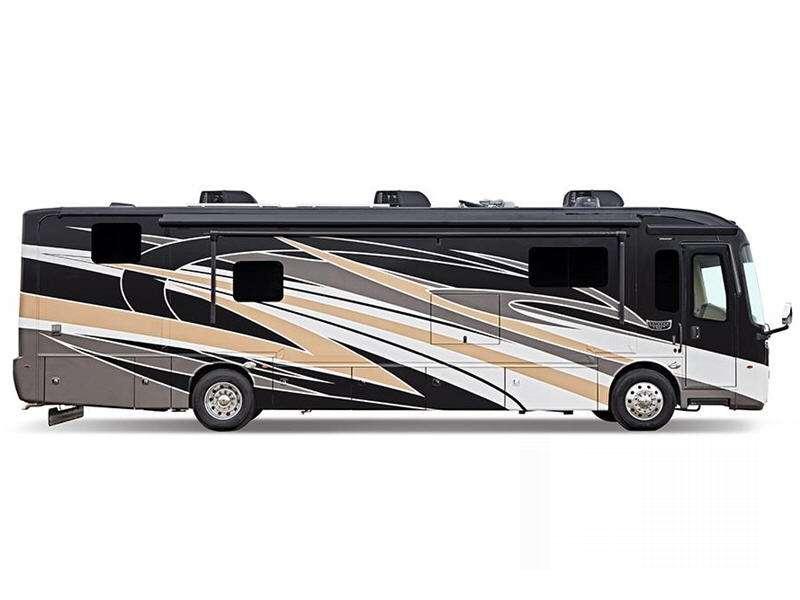

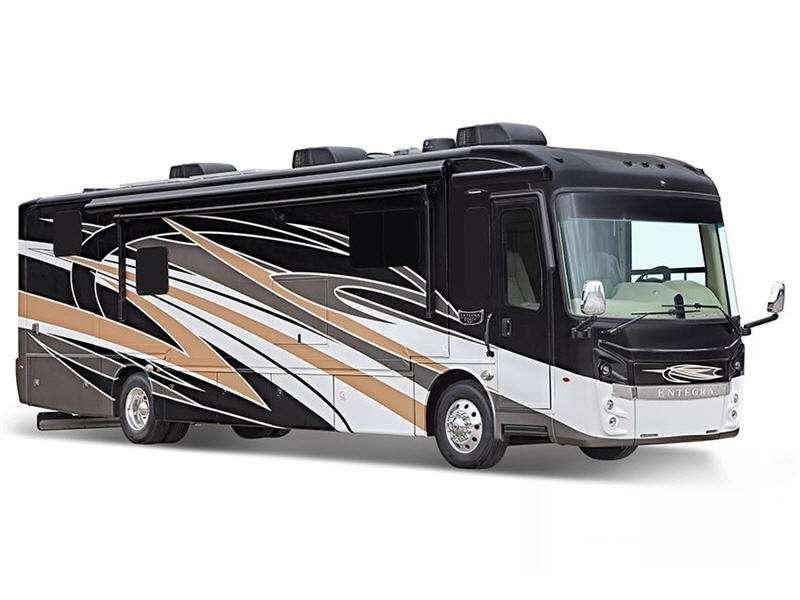

The Entegra Coach Reatta Class A diesel motorhomes may be smaller in size, but they still pack in all of the big features! There are beautiful residential touches throughout with all of the modern technology you could dream of having.
They are built on a Spartan K1 raised-rail chassis with a Cummins B6.7 turbocharged 360HP engine to power them. The independent front suspension has front air disc brakes and the Equalizer hydraulic automatic coach leveling ensures for an even set up. The cockpit not only has 6-way power adjustable driver and passenger seats for a comfortable ride, but also a Xite XSG4 infotainment system with a 9" touchscreen, iGO navigation, Bluetooth, Sirius XM, AM/FM tuner, integrated camera control, and even a house mode whole-coach audio distribution so you don't have to yell to those behind you.
It's time you hit the road in comfort and style with an Entegra Coach Reatta Class A diesel motorhome!
-
Reatta 39BH
Entegra Coach Reatta Class A diesel motorhome 39BH highlights: Bath and a Half ... more about Reatta 39BH
Specifications

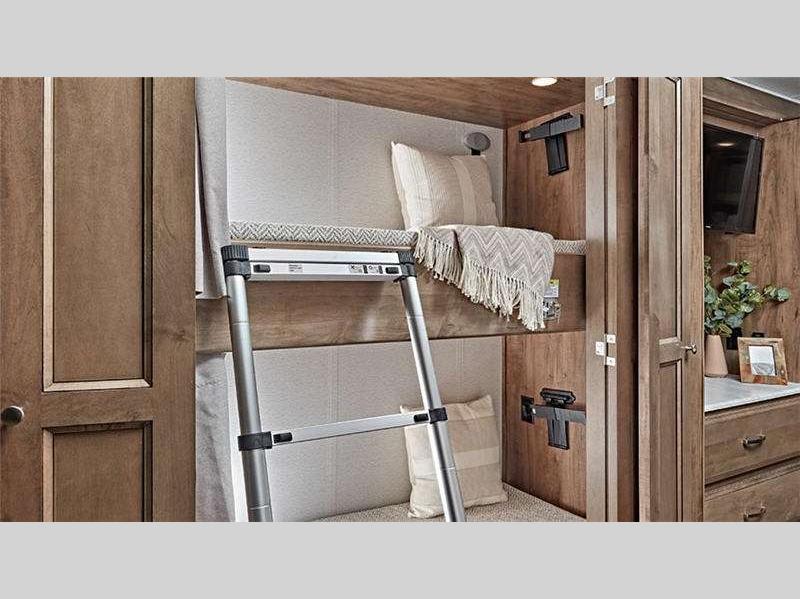

Sleeps 7 Slides 3 Length 39 ft 11 in Ext Width 8 ft 5 in Ext Height 12 ft 10 in Int Height 7 ft Interior Color Glacier, Summit, Valley Exterior Color Blue Velvet, Penny Graphite, Red Carmel, Pewter Red Hitch Weight 10000 lbs GVWR 36320 lbs Fresh Water Capacity 100 gals Grey Water Capacity 62 gals Black Water Capacity 41 gals Tire Size 275/80R 22.5" Furnace BTU 50000 btu Generator Onan 8,000-watt diesel Fuel Type Diesel Engine Cummins B6.7 Chassis Spartan K1 Horsepower 360 hp Fuel Capacity 100 gals Wheelbase 261 in Number Of Bunks 2 Available Beds King Power Head Lift Torque 800 ft-lb Refrigerator Type Residential with Ice Maker and Water Dispenser Convection Cooking Yes Cooktop Burners 2 Shower Size 30" x 40" Number of Awnings 1 Axle Weight Front 14320 lbs Axle Weight Rear 22000 lbs LP Tank Capacity 24.5 gals Water Heater Type Tankless AC BTU 45000 btu TV Info LR 50" Samsung 4K UHD Smart TV, BR 32" LED Smart TV, Ext. 43" Samsung 4K UHD Smart TV Awning Info Power with LED Lights Washer/Dryer Available Yes Gross Combined Weight 46320 lbs Shower Type Standard Electrical Service 50 amp Similar Floorplans
-
Reatta 37K
Entegra Coach Reatta Class A diesel motorhome 37K highlights: Rear Private ... more about Reatta 37K
Have a question about this floorplan? Contact Us
Specifications
Sleeps 5 Slides 4 Length 37 ft 10 in Ext Width 8 ft 5 in Ext Height 12 ft 10 in Int Height 7 ft Interior Color Glacier, Summit, Valley Exterior Color Blue Velvet, Penny Graphite, Red Carmel, Pewter Red Hitch Weight 10000 lbs GVWR 34320 lbs Fresh Water Capacity 100 gals Grey Water Capacity 62 gals Black Water Capacity 41 gals Tire Size 275/80R 22.5" Furnace BTU 35000 btu Generator Onan 8,000-watt diesel Fuel Type Diesel Engine Cummins B6.7 Chassis Spartan K1 Raised Rail Horsepower 360 hp Fuel Capacity 100 gals Wheelbase 236 in Available Beds King Power Head Lift Torque 800 ft-lb Refrigerator Type Residential with Ice Maker and Water Dispenser Convection Cooking Yes Cooktop Burners 2 Shower Size 36" x 36" Number of Awnings 1 Axle Weight Front 14320 lbs Axle Weight Rear 20000 lbs LP Tank Capacity 24.5 gals Water Heater Type Tankless AC BTU 30000 btu TV Info LR 50" Samsung 4K UHD Smart TV, BR 32" LED Smart TV, Ext. 43" Samsung 4K UHD Smart TV Awning Info Power with LED Lights Washer/Dryer Available Yes Gross Combined Weight 44320 lbs Shower Type Standard Electrical Service 50 amp Similar Floorplans
-
Reatta 39T2
Entegra Coach Reatta Class A diesel motorhome 39T2 highlights: Bath and a Half ... more about Reatta 39T2
Have a question about this floorplan? Contact Us
Specifications
Sleeps 5 Slides 3 Length 39 ft 11 in Ext Width 8 ft 5 in Ext Height 12 ft 10 in Int Height 7 ft Interior Color Glacier, Summit, Valley Exterior Color Blue Velvet, Penny Graphite, Red Carmel, Pewter Red Hitch Weight 10000 lbs GVWR 36320 lbs Fresh Water Capacity 100 gals Grey Water Capacity 62 gals Black Water Capacity 41 gals Tire Size 275/80R 22.5" Furnace BTU 50000 btu Generator Onan 8,000-watt diesel Fuel Type Diesel Engine Cummins B6.7 Chassis Spartan K1 Horsepower 360 hp Fuel Capacity 100 gals Wheelbase 261 in Available Beds King Power Head Lift Torque 800 ft-lb Refrigerator Type Residential with Ice Maker and Water Dispenser Convection Cooking Yes Cooktop Burners 2 Shower Size 30" x 40" Number of Awnings 1 Axle Weight Front 14320 lbs Axle Weight Rear 22000 lbs LP Tank Capacity 24.5 gals Water Heater Type Tankless AC BTU 45000 btu TV Info LR 50" Samsung 4K UHD Smart TV, BR 32" LED Smart TV, Ext. 43" Samsung 4K UHD Smart TV Awning Info Power with LED Lights Washer/Dryer Available Yes Gross Combined Weight 46320 lbs Shower Type Standard Electrical Service 50 amp Similar Floorplans
Reatta Features:
Standard Features (2023)
Chassis
- Spartan® K1 raised-rail chassis
- Cummins® B6.7 turbocharged 360-HP engine with 800-lb. ft. torque at 1,800 RPM
- Allison® 3,000 MH 6-speed transmission
- Rear-mounted radiator
- 170-amp alternator
- 750-watt engine block heater
- Variable geometry turbo (VGT) engine brake
- Front axle- 12,600 lb. (37K) 14,320 lb. (39BH/39T2)
- Independent front air suspension (IFS)
- Rear axle - 20,000 lb. (37K) 22,000 lb (39BH/39T2)
- 4.88 rear axle ratio
- Michelin® 275/80R 22.5” tires
- Bilstein® 46mm shocks
- Tire pressure monitoring system (TPMS) with temperature monitoring
- Equalizer™ hydraulic automatic coach leveling
- Remote air connection
- (2) 12V chassis batteries
- 100-gal. fuel tank
- 10-gal. DEF tank
- Spartan® Safehaul tow vehicle air brake system
- 10,000-lb. hitch with 7-pin plug
- ABS disc brakes on front axle, drum brakes on drive and tag axle
Construction
- Vacuum-bonded layers of Darco underbelly, a welded aluminum frame, R-9 bead-foam insulation, 3/8" Structurwood® and 1/4" plywood
- X-Bridge™ bracing welded into chassis frame
- Insulated front and rear caps (R-24)
- One-piece fiberglass with 3/8" plywood decking, 4" arched aluminum trusses, insulation and reflective Flexfoil® (R-24)
- Electric-powered slideout rooms
- Vacuum-bonded, high-gloss gelcoat with R-8 bead-foam insulation
Heat, AC, Water & Power
- Heated basement storage
- Onan® 8,000-watt diesel generator, with automatic start, on slide-out tray
- 2,000-watt pure sine wave inverter with 100-amp battery charger
- (2) L16 AGM batteries (6V/390 amp hrs. ea.)
- 50-amp power cord
- Automatic transfer switch with surge protection
- (3) 15,000-BTU A/C units with heat pumps [(2) 15,000-BTU units with heat pumps on 37K]
- 35,000-BTU furnace (37K) / (1) 20,000 and (1) 30,000 (39BH, 39T2)
- Tankless gas water heater
- 24.5-gal. propane tank
- Sani-Con® Macerator holding tank dump system with manual gate valves, manual backup and metal door
- Black holding tank sprayer
- City and tank water filtration system
- Winterizing drain system
Exterior

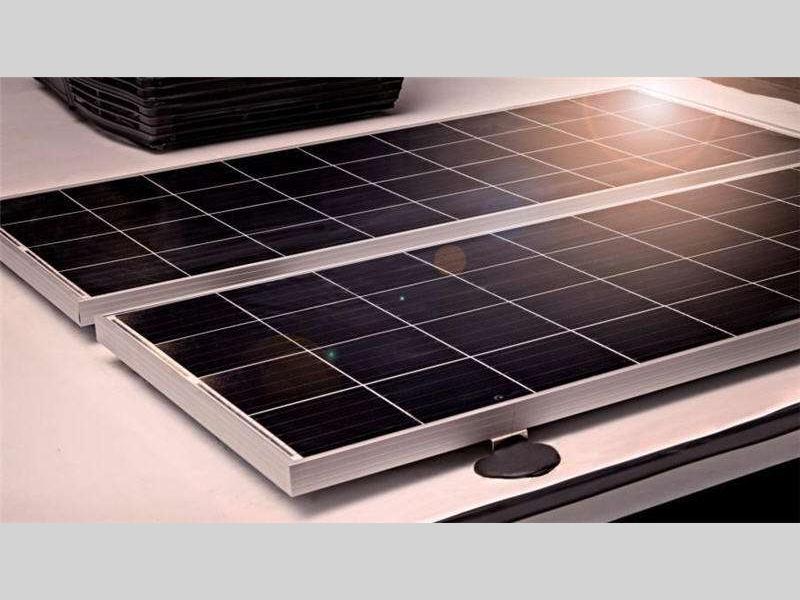

- (2) 190W Go Power! solar panels
- Carefree® power patio awning with LED lights
- Carefree® power entrance door awning with LED lights
- Carefree® slideout awnings
- Carefree® window awnings
- Frameless, dual-pane, tinted, safety-glass windows
- Grab handle and keypad system for keyless entry
- 43” Samsung® 4K UHD Smart TV with tilt, swivel, and extend adjustment; JBL radio and speakers with USB port and receptacle
- Heated, remote-control, side-view mirrors with integrated cameras
- Diamond Shield™ front protective film mask
- Halogen high and low beam headlights and fog lights
- Daytime running lights
- LED marker lights, turn lights, license plate light, third brake light, accent lights and docking lights
- Mudflap with chrome “Entegra” nameplate
- Winegard® TRAV’LER satellite dish DIRECTV® - standard with USA option
- Winegard® TRAV’LER satellite dish Shaw TV - standard with CSA option
- Winegard® Rayzar Z1 TV antenna
- Winegard® WiFi extender with 4G/LTE
- Exterior utility center
- Slideout basement storage tray
- Sikkens custom full-body paint
- Removable screen on entry door

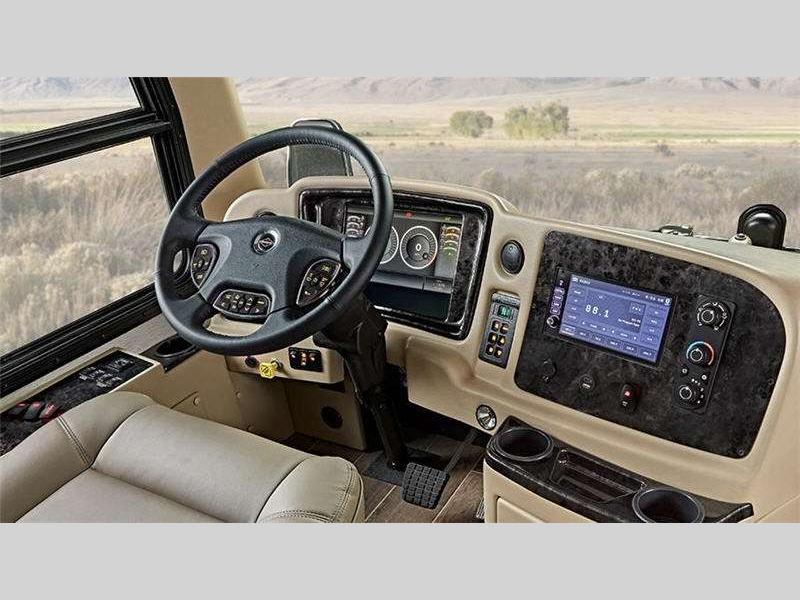

Cockpit
- Valid 12.3" digital dash with quad core graphics processor, on-board diagnostics, selector knob and ability to display traditional instrument cluster, 360° camera system or GPS navigation
- Xite™ 360° HD digital camera system
- Xite™ XSG4 infotainment system with 9" touchscreen, iGO navigation, Bluetooth®, Sirius XM™ and AM/FM tuner, integrated camera control and house mode whole-coach audio distribution
- Steering wheel with integrated controls for cruise, wipers, radio and Bluetooth® phone functionality
- Manual tilt and telescoping steering column
- Ultra-Vision® one-piece wrap-around tinted windshield
- 6-way power adjustable driver and passenger seats
- Powered flush stepwell cover
- Powered adjustable brake and accelerator pedals
- Powered front sun visors and privacy shades

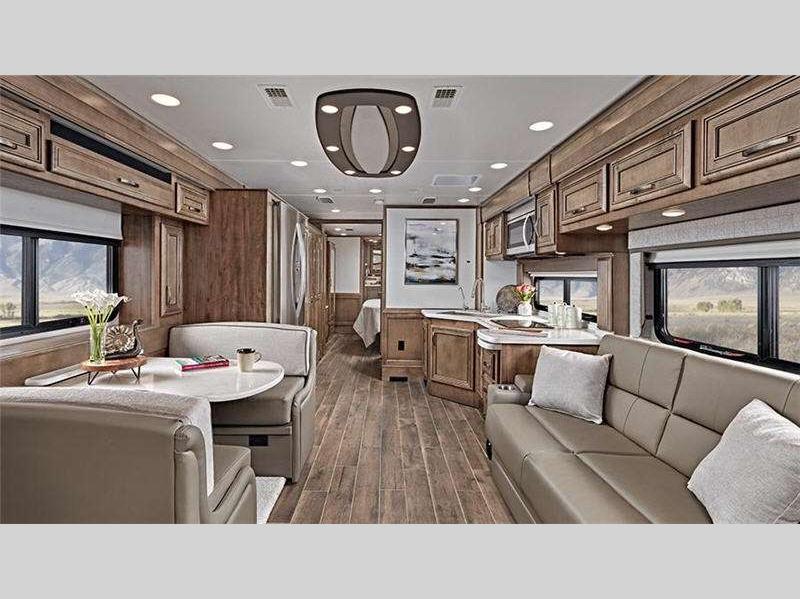

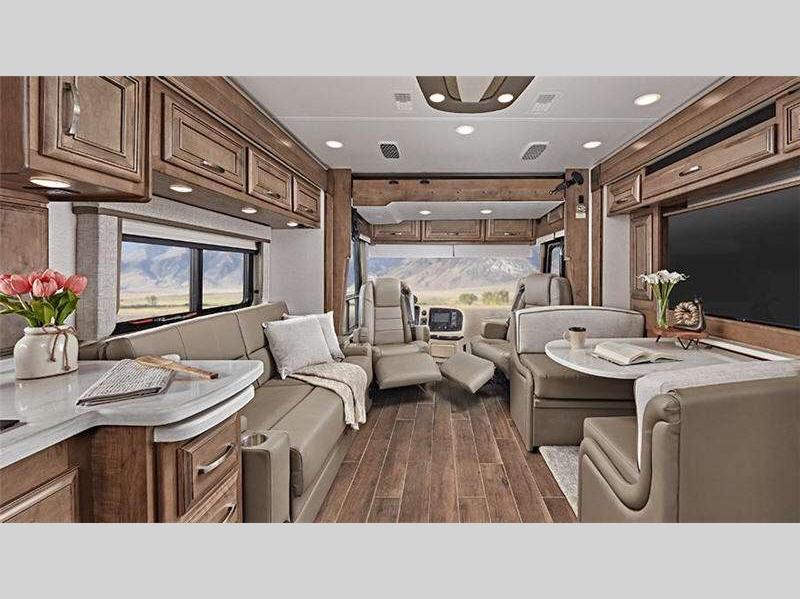

Interior
- LED-lit fireplace with 5,000-BTU heating element (37K only)
- Firefly multiplex system with 7” VegaTouch touchscreen for complete integration of coach controls (mobile app available)
- 50” Samsung® 4K UHD Smart TV
- Samsung® sound bar with subwoofer
- Sony® Blu-ray™ player
- Premium furniture
- Hand-laid porcelain tiled floors
- LED interior lighting
- Decorative ceiling feature with integrated accent lighting
- Manual solar day shades and blackout night shades
- Central vacuum system

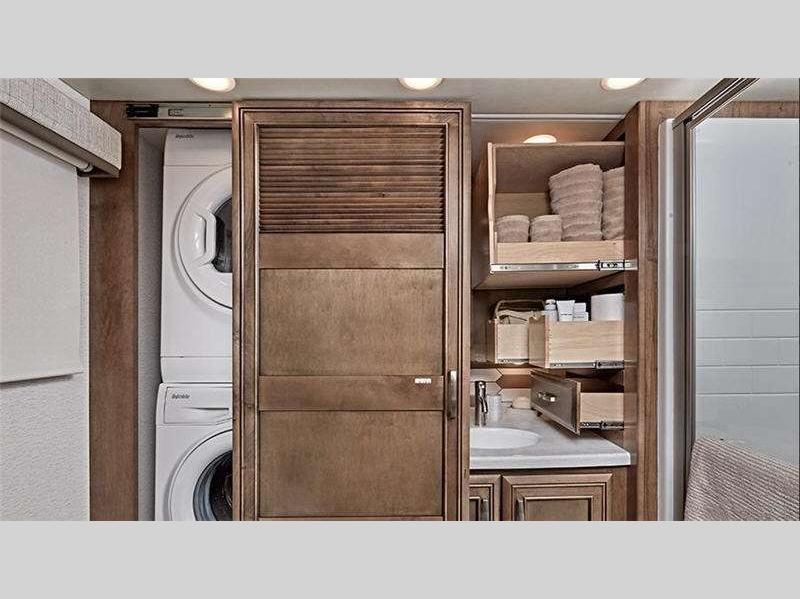

- Separate washer and dryer

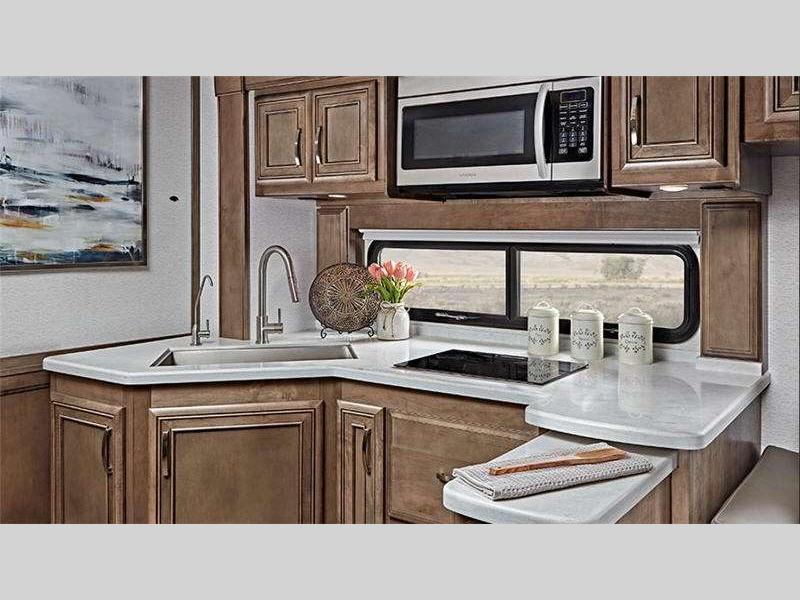

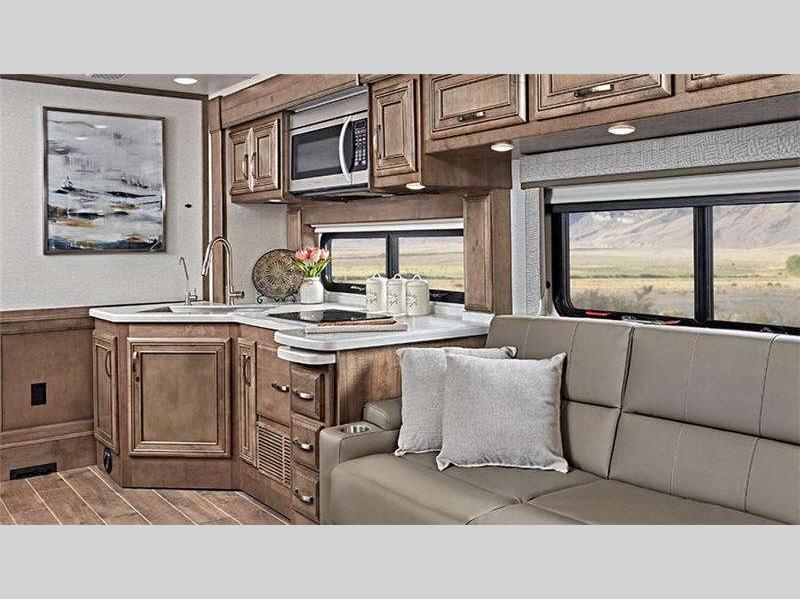

Kitchen
- Window with push-out lever operation and screen
- Stainless-steel residential refrigerator with ice maker and water dispenser
- Induction cooktop
- 1.5-cu. ft. convection microwave oven
- Solid-surface countertops
- Stainless steel sink
- Fan-Tastic power exhaust fan with intake

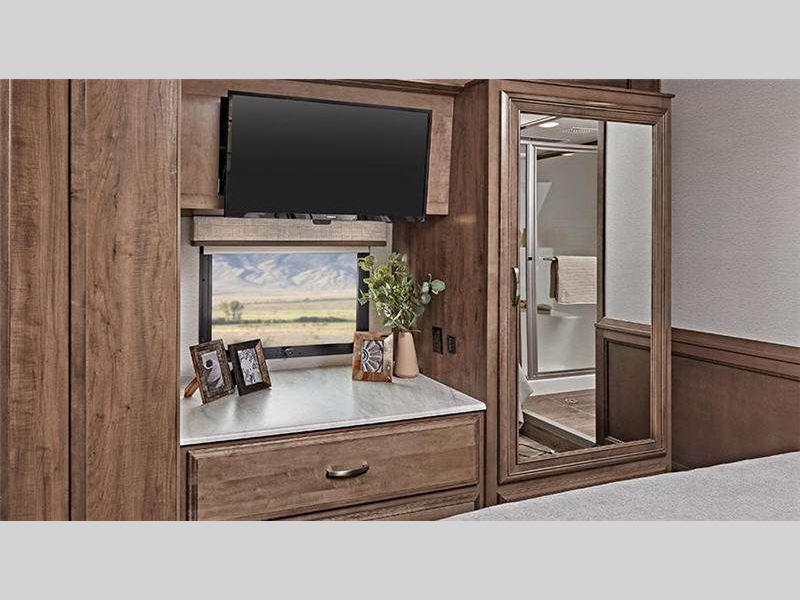

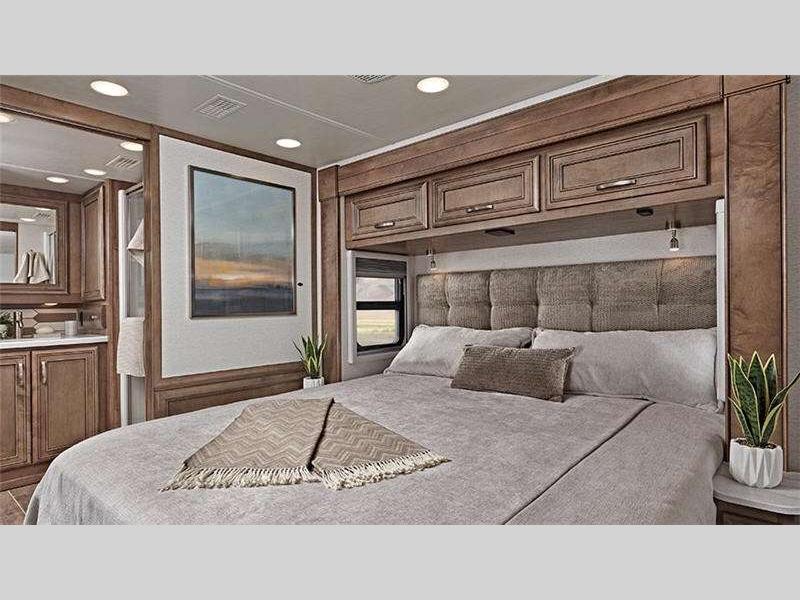

Bedroom
- King-size pillow-top mattress on tilt bed
- 32" Samsung® LED 1080P Smart TV
- Sony® Blu-ray™ player

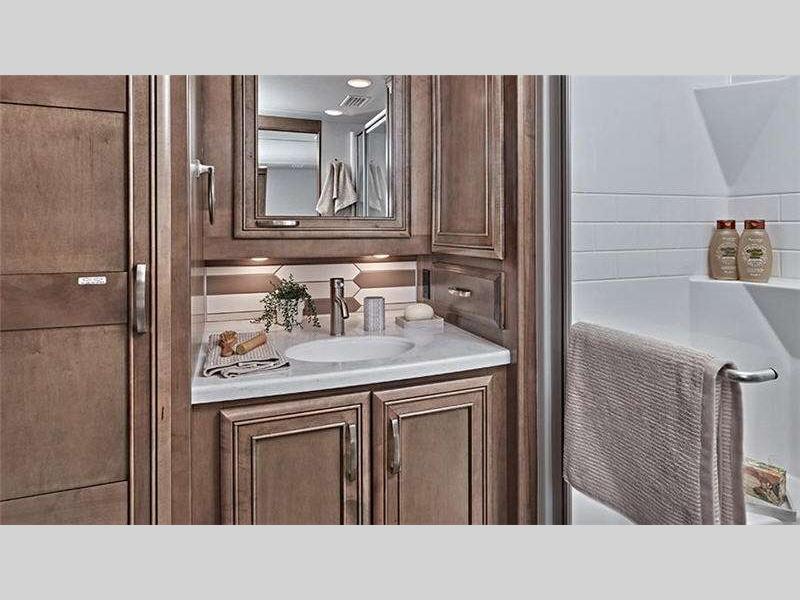

Bathroom
- Solid-surface countertops with integrated sink
- One-piece fiberglass shower with skylight
- Aqua View SHOWERMI$ER™ water saving system
- Thetford® Aqua Magic toilet with foot flush
- Fan-Tastic power exhaust fan with intake
Safety
- Porch light
- Combination carbon monoxide detector
- LP gas alarm
- Smoke alarm
Options
- Canadian Standards (includes Canadian Shaw satellite)
- Customer Value Package (Mandatory) 8 KW diesel generator, 2K-watt inverter, (2)15K-BTU air conditioners with heat pumps, automatic leveling jacks, backup and sideview cameras, power awning with LED lights, exterior entertainment center with LED TV, solar shades
- Power theater seating (39BH only)
- Hide-a-bed sofa ILO power theater seating (37K only)
- Sofa ILO power theater seat (39T2 only)
- Power front overhead bunk
- Winegard In-Motion satellite dome
- Winegard TRAV'LER Dish Network
See us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to Covid19 supply chain issues, some features and options shown may be temporarily substituted or removed.
